SteelBor S36 Compact Magnet Drill (850236)
Videos

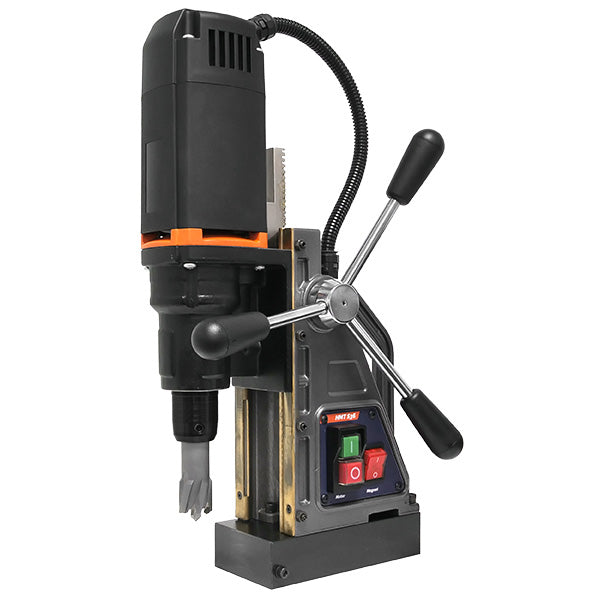

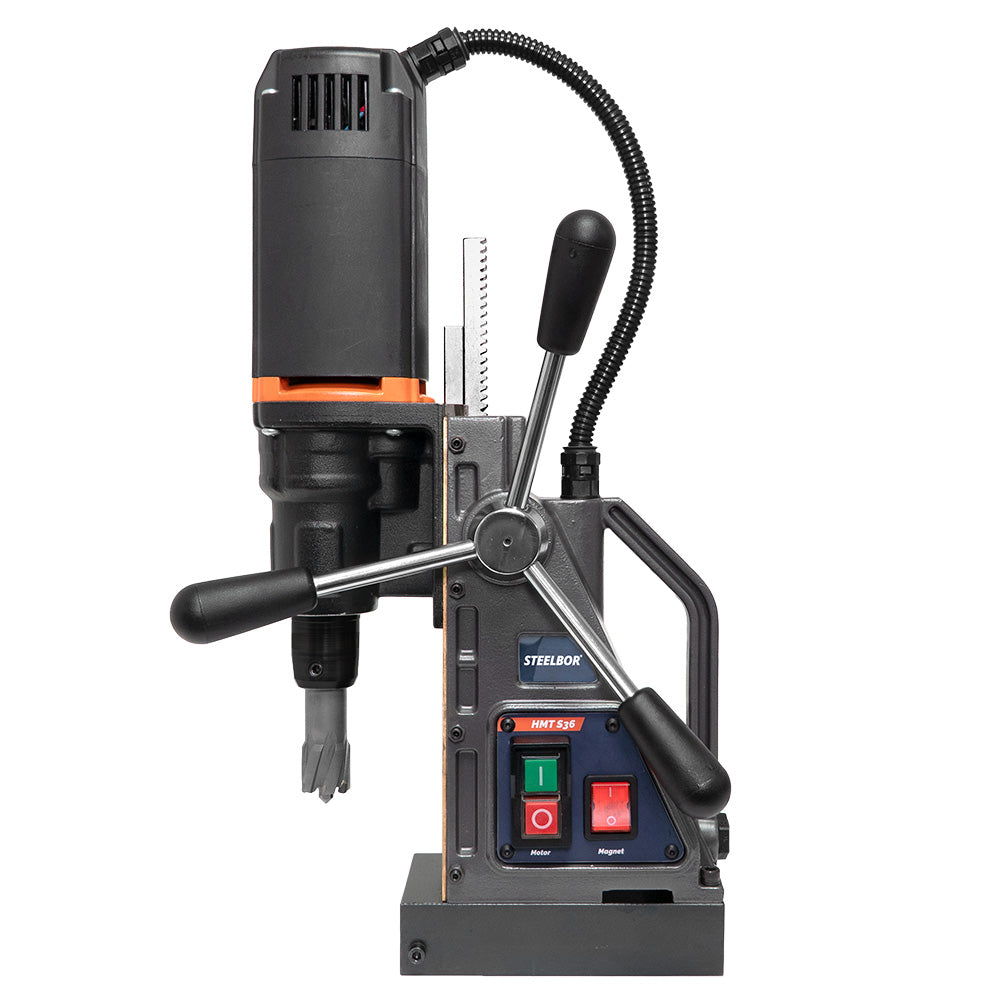

Introducing the S36 - SteelBor's NEW flagship compact mag drill.
The S36 delivers deeper cuts, faster job turnaround, and site-ready durability — all in a compact, portable form.
Built to outperform other compact drills, the S36 combines a 4" cutting depth with a highpower Eibenstock motor. Designed for structural steel and access-critical jobs, it pairs perfectly with Versadrive tooling and standard broach cutters for fast, flexible holemaking.
- 4" cutting depth for deep broaching & countersinking
- Drills up to 1-3/8" diameter in structural steel
- High-performance motor delivers smooth, fast cutting
- Lightweight for easier transport and access work
- Weldon shank compatible for full cutter flexibility
- Drill & countersink using Versadrive quick-change tools
*Supplied in protective site case.
Technical Specification
| MAX TCT CUTTER CAPACITY | 1-3/8" |
| MAX HSS CUTTER CAPACITY | 1-1/4" |
| MAX CUTTER LENGTH | 4" |
| TWIST DRILL CAPACITY | 1/2" |
| MAX TAP CAPACITY | N/A |
| MAX COUNTERSINKING | 1" |
| LENGTH | 10-1/4" |
| WIDTH (Inc Handles) | 6-1/4" |
| HEIGHT (Min-Max) (exc. cable gland) | 13-3/4" - 19-1/2" |
| STROKE | 5-1/2" |
| WEIGHT | 22 Lb |
| MAGNET (L X W) | 6-1/4" x 3-1/8" |
| MAGNETIC FORCE | 2235 Lb |
| MOTOR POWER | 1050w |
| SPEED RPM (No Load) | 800min-1 |
| SPINDLE | 3/4" Weldon |
| ARBOR | Integral ¾" Weldon |
| COOLANT SYSTEM | Optional Extra |
| WARRANTY | 2 Year (When registered) |
*Supplied with metal safety guard, restraint strap, handles and protective blow-moulded sitecase
